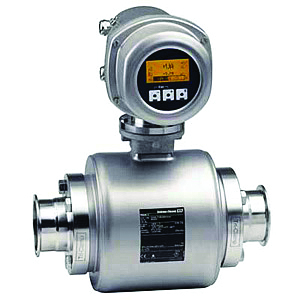

Promag 53H - Electromagnetic Flowmeter


Electromagnetic Flow Measuring System
Cost-effective flow measurement with a high degree of accuracy for a wide range of process conditions.

The Proline transmitter concept comprises:
  • Modular device and operating concept resulting in a higher degree of efficiency
  • Software options for batching, electrode cleaning and pulsating flow
  • Uniform operating concept

Characteristics:
  • No pressure loss
  • Insensitivity to vibrations
  • Simple installation and commissioning
  • CIP/SIP cleaning
  • Stainless steel housing

Field of application:
  • Hygiene, food and beverage or process applications.
Approvals in the food industry/hygiene sector:
  • 3A approval, EHEDG-tested, conformity with FDA, USP Class VI
  • Hazardous area approvals

Application-specific lining materials: PFA

Specifications:
  • Nominal diameter range: DN 2...150 (1/12"...6")
  • Max. measured error: ±0.2%
  • Measuring range: 0...600 m3/h
  • Max. process pressure: PN16...40
  • Medium temperature range: -20...+150°C (-4...+302°F)
  • Ambient temperature range: -20...+60°C
  • Degree of protection: IP 67 (NEMA 4x)
  • Display/Operation: Four line display with backlit, touch control

Outputs:
  • 4...20 mA
  • Pulse / frequency(active/passive)
  • Relais
  • Status

Inputs:
  • Status
  • Current input

Digital communication:
  • HART
  • PROFIBUS PA/DP
  • FOUNDATION Fieldbus
  • MODBUS RS485
  • EtherNet/IP
