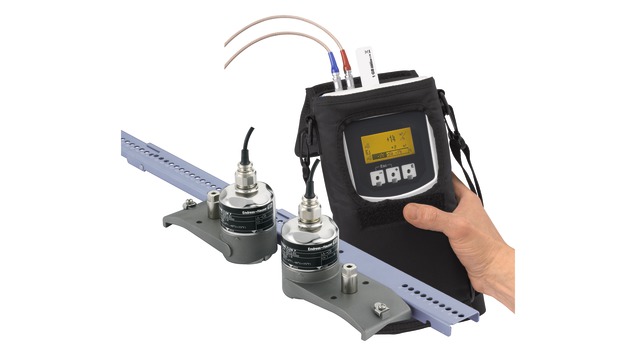

Portable Proline Prosonic Flow 93T - Portable Ultrasonic Flowmeter







The portable ultrasonic flowmeter Prosonic Flow 93T is designed
for temporary monitoring and test measurements with clamp on sensors.
It is operated independently of the mains power using a battery.
The Prosonic Flow 93T is ideal for conducting verification measurements
at existing flow metering points.







Benefits

  • Automatic frequency scan for maximum measuring performance
  • Quick and secure installation: specially designed mounting kits
  • No additional leakage paths: external measurement from outside the pipe
  • Process transparency: diagnostic capability
  • Temporary monitoring of measuring points: portable flowmeter with
    rechargeable battery and current output
  • Verification of other flow devices: integrated data logger
    and current input
  • Automatic recovery of data









Field of application

  • Ideal solution for temporary use everywhere precise measurement or verification is required
  • Can be used with all metal and plastic pipes lined or unlined and with composite pipes
  • Suitable for pipe diameters from DN 15 to 4000 (½ to 160")
  • Suitable for fluid temperatures ranging from –40 to +170 °C (–40 to +338 °F)



















Technical information



Liquids

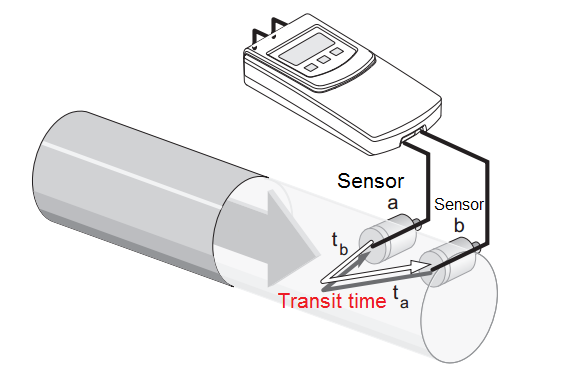

Measuring Principle Ultrasonic flow
Product headline Portable volume flow meter for measurement of liquid applications;
from outside of the pipe with "Clamp On" sensors
Sensor features Integrated USB data logging
Transmitter features
Nominal diameter range DN 15...65
- 1/2"...2 1/2" (-40...+100°C or -40...+150 °C)
DN 50...300
- 2"...12" -40...+80 °C or 0...+170 °C)
DN 100...4000
- 4"...160" (-40...+80 °C)
Max. measured error +/-2.0 %
Measuring range 0....452'389 m3/h
Max. process pressure No limit
Medium temperature range DN 15...65
-40...+150°C
(-40...+302°F)
DN 50...300
-40...+170°C
(-40...+338°F)
DN 100...4000
-40...+80°C
(-40...+176°F)
Degree of protection IP 40
Display/Operation Four line backlit
touch control
Outputs Integrated data logger/site manager
Easy data transfer via USB stick without additional software
Inputs 4...20mA
Digital communication FXA 193



Click here to download the PDF file.
