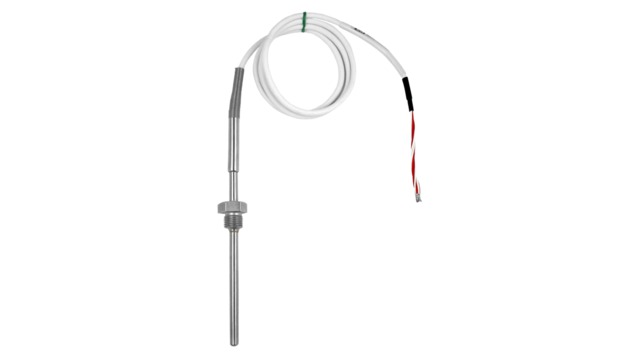

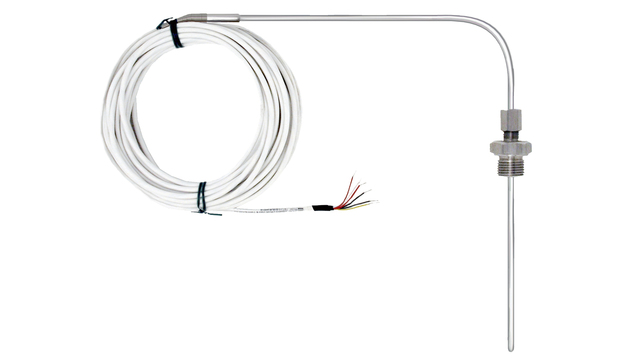

Omnigrad T TST310 - RTD Thermometer, Cable Probe
The RTD cable probe is easy to install and provide a high operational safety due to reliable
and accurate temperature measurement in common processes. The probe is specially suited
to temperature measurement in machinery, laboratory equipment and plants in gaseous
or liquid medium like air, water, oil, etc. Without additional thermowell the probe sheath
is directly in contact with the process medium. This enables the cable probe to detect rapid
temperature changes fast and accurate.
Benefits
-
High flexibility through user-specific insertion lengths and variable process connections
-
Fast response time
-
Single or double Pt100 sensor of accuracy class A, B, or AA as per IEC 60751
-
Types of protection for use in hazardous locations: Intrinsic safety (Ex ia) and non-sparking (Ex nA)
Field of application
The resistance thermometer is specially suited to temperature measurement in machinery,
laboratory equipment and plants in gaseous or liquid media like air, water, oil and others.
Technical information
| Measuring Principle | Resistance Temperature Detector | |
| Characteristic / Application |
metric style cable probe suitable for hazardous areas process connection as compression fitting |
|
| Thermowell / protection tube | without (not intended to use with thermowell) | |
| Insert / probe | mineral insulated (MI), flexible | |
| Outer diameter protection tube |
3,0 mm (0,12'') 6,0 mm (0,24'') |
|
| Max. immersion length on request | up to 10.000,00 mm (393,70'') | |
| Material protection tube/thermowell |
1.4404 (316L) 1.4571 (316Ti) |
|
| Process connection |
compression fitting: G1/4" G1/2" NPT1/4" NPT1/2" |
|
| Tip shape | straight | |
| Operating temperature range |
PT 100: -50 °C ...400 °C (-58 °F ...752 °F) |
|
| Max. process pressure (static) | at 20 °C: 25 bar (363 psi) | |
| Accuracy |
class A acc. to IEC 60751 class B acc. to IEC 60751 1/3 DIN class B acc. to IEC 60751 |
|
| Response time |
t50 = 3 s t90 = 6 s |
|
| Integration head transmitter | no | |
| Ex - approvals |
ATEX II1/2D Ex ia IIIC,II1G Ex ia IIC T6 ATEX II1D Ex ia IIIC, II1G Ex ia IIC T6 ATEX II1G Ex ia IIC T6 ATEX II 3 G Ex nA IIC T6, II3D NEPSI Ex ia IIC T6 IECEx Ex ia IIC T6 Ga NEPSI Ex nA IIC T6 |
|
