Memograph M RSG40 - Advanced Graphic Data Manager

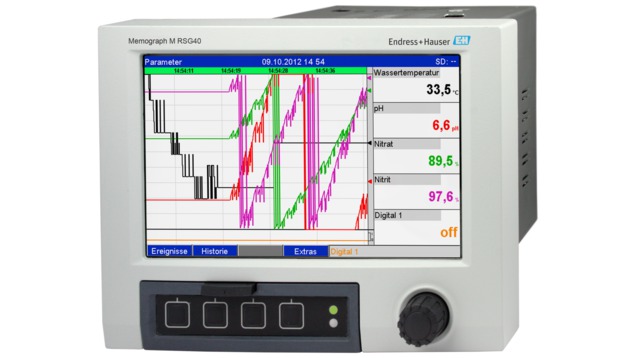

Safe and complete recording and visualization of all process sequences. The Memograph M RSG40  has a wide range of functionality, modular construction and a intuitive operator concept. With its brilliant 7” TFT display it is possible to display process values e.g. as curves, as a circular chart display or as an application-specific process screen. The Memograph M offer is completed with specific application packages. Memograph M - More than just a videographic recorder!



Benefits

  • Visual: 7" TFT display as onsite display for optimum readability

  • Secure: Security package with person-specific access authorization and electronic signature (FDA 21 CFR 11)

  • Flexible: Free choice of display mode. E.g. instrument, process screen and circular chart display

  • Clear: Alarm management with all active, confirmed and historical alarms

  • Practicable: Installation depth 158 mm, front-panel IP65, NEMA4; Operating via external USB keyboard, printout via USB printer

  • Limitless: Integrated Web server, fieldbus (Profibus, Modbus), common standard protocols and interfaces such as USB, TCP/IP, OPC and Ethernet are supported

  • Informative: Event search, automatic signal analysis



Field of application

The solution for all your tasks. For example, for:

  • Process measuring technology

  • Power stations and energy supply

  • Steam boiler monitoring/efficiency calculation

  • Food and pharmaceutical industry

  • Plant and apparatus engineering and construction; Milk pasteurization plants

  • Environmental and climate measuring technology; Storm overflow control

  • Quality assurance and production

  • Batch analysis; Tele-Alarm functions

  • Testing bays and laboratory applications





Technical information

Measuring Principle Electronic Data Acquisition
Functions Signal analysis
Interface / modem
OPC-Server
ReadWin 2000
Mathematic formula editor
energy package, water+steam
Maximal input 20 analog (U, I, TC, RTD, Frequency, Pulse)
14 digital (control, event and counting inputs)
Maximal output 12 Relay
2 Analog output (I, Pulse)
1 Power loop supply
Interface RS 232
RS 485
Ethernet
Modbus RTU
Modbus TCP
PROFIBUS DP
USB
Storage/Recording Internal memory
SD card
USB Stick
Display TFT 7" colour graphic display
Housing panel mounting
desktop housing
Field housing
Power supply 100...230 V AC +/-10%
24V (-10%; +15%) AC/DC
Certification 21 CFR 11
Milk pasteurisation approval
UL recognized
CSA GP
Software package Batch programme
Waster water software
Tele-Alarm software
Gas-Steam-Heat calculation
Energy package + Water + Steam
Waste water + Storm overflow + Tele Alarm
Tele-Alarm software + Energy package + Water + Steam
