Energy Solution - Heating and Cooling
Applications:
-
Measuring operating equipment
and energy source: Heating and
Cooling -
Monitoring energy consumption
and the efficiency of cooling and
heating systems
Benefits:
- Automatic tracking of specific energy figures
- Uncover unexploited potential energy savings
- Creates energy forecasts
Features:
-
Solutions for every budget, from
local energy consumption
monitoring through to global solutions - World-wide online access to data
-
User-friendly software with easy
to-use interface
Energy management software:
- Monitor specific energy consumption
-
Allocate costs across multiple cost
centers -
Set and monitor target values based on
historic data - Uncover leaks
-
Calculate profits due to energy saving
measures

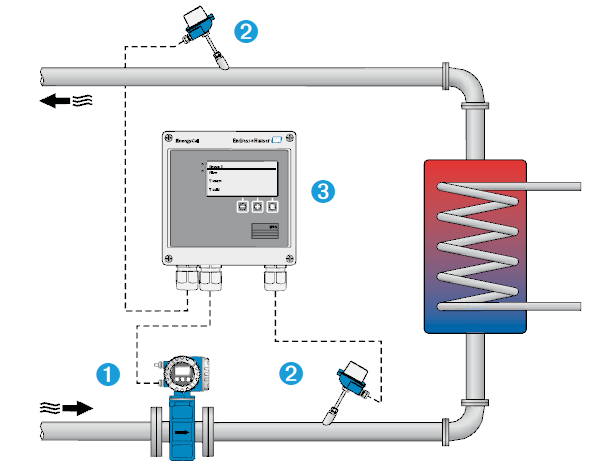

Measurement technology:
1. Flow measurement
Promag 53P (Magmeter)
-Standard meter for volume measurement of electrically conductive liquids, also available in a "high-temperature" version
-With optional electrode cleaning function (ECC) to prevent electrically conductive deposits in the measuring tube, e.g. for fluids that forms a coating
2. Temperature measurement
Omnigrad TR10
Standard sensor for accurate fluid temperature measurement in the inlet/outlet. Paired PT100 sensors (Class A) should ideally be used; these are available as standard.
3. Data analysis, Data preparation
EngyCal RH33 (heat computer):
-For calculating the mass or heat energy of any liquid, gas and steam
-RMC621 flow computer for multiple applications and with intrinsically safe inputs (optional)
Memograph M (Data manager)
-For registering and visualizing process data, and for calculating key characteristic values, e.g. total energy consumption
-With optional functions for calculating heat differences in glycols and water (up yo 8 measuring points)
