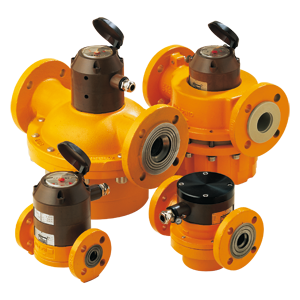

DOMINO ARD - Ring Piston Flowmeters For Chemical Liquids







Technical data

  • Ring piston flow meters ARD for 15...30'000 l/h
  • Nominal diameter DN 15, 20, 25, 40 and 50 mm
  • Operating pressures PN 10, 16, 25 or 40
  • Fluid temperatures up to 180 °C
  • Measuring error limits ± 0,5 % of effective value
  • For high viscosity range up to about 10.000 mPa·s



Features

  • Product versions for safe areas or for hazardous areas (ATEX)
  • Modular products with wide range of flow sensors, displays, pulsers and batching controls
  • Mechanical, pneumatic and electronic batching controls
  • Modular flow measurement concept
  • All flowmeters available with various modules according to need



Benefits for you

  • Highly flexible mounting with least space requirements
  • Suitable for both conductive and non conductive liquids
  • Flow disturbances do not influence proper operation and accuracy
  • Long life with low maintenance
