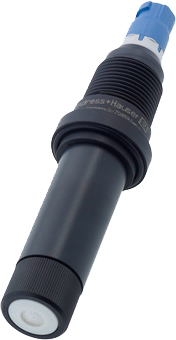

Chloromax CCS142D - Digital disinfection sensor
Memosens sensor for drinking water and process applications
Chloromax CCS142D is the digital free chlorine sensor for all kinds of water.
Chloromax CCS142D is the digital free chlorine sensor for all kinds of water.
It measures reliably even if fluctuations in flow or conductivity occur and enables
control of the disinfection loop so that the water is free of germs. The sensor offers
low maintenance saving you time. Thanks to Memosens digital technology, CCS142D
combines maximum process and data integrity with simple operation. It resists corrosion
and moisture, enables lab calibration and simplifies predictive maintenance.
Benefits
- Long calibration and maintenance intervals
- Easy membrane replacement thanks to prefabricated membrane cap
- Zero-point calibration normally not required, but possible for best adaptation to lowest measured values
- Measured values are not affected by conductivity fluctuation
- Sensor can be installed in flow cell CCA250 or in immersion assemblies. Measurement virtually independent of the flow at flow velocities above 30 l/h or ~8 gal/h (CCA250) or above 15 cm/s or ~0.5 ft/s (immersion).
- Maximum process safety through no-contact inductive signal transmission
-
Easy handling due to storage of sensor-specific data
Field of application
Chloromax CCS142D measures free chlorine in:
-
Drinking water
- Trace and standard measurement in process water and distribution networks
- Monitoring, control and optimization of disinfection processes -
Wastewater treatment plants
- Reuse of cleaned outlet water -
Utilities of all industries
- Trace and standard measurement in all disinfection applications
- Process applications, e.g. bottle rinsing machines - Pool water
Features and specifications
| Measuring Principle | Free chlorine | |
| Application | Water treatment (drinking water, service water, process water, distribution network) | |
| Characteristic | amperometric measurement of free chlorine | |
| Measurement range | 0,01..5 mg/l / 0,05..20mg/l free chlorine | |
| Measuring principle | membrane-covered amperometric sensor | |
| Design |
Sensor for use in flow cell (CCA250) or for immersion use (thread NPT 3/4 on top) Memosens-technology. |
|
| Material | Sensor shaft: PVC. Membrane: PTFE | |
| Dimension |
Diameter sensor body: 25mm diamter sealing seat for flow cell: 31mm length overall: 148mm |
|
| Process temperature | 0..45°C, not freezing | |
| Process pressure | ambient to 2bar abs | |
| temperature sensor | Integrated (Memosens) | |
| Connection | Memosens | |
