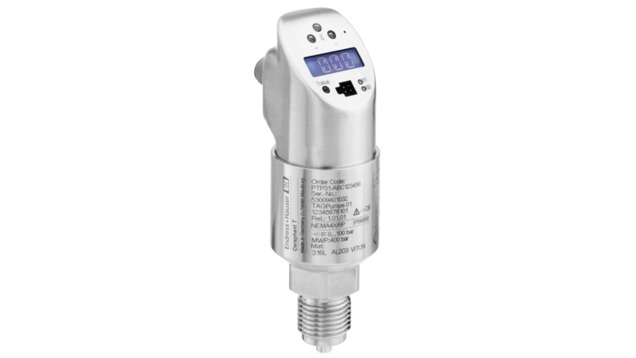

CeraphantT PTP31 - Pressure Switch With Metal Sensor Monitoring Absolute And Gauge Pressure
The Ceraphant PTP31 is a price-attractive pressure switch with piezoresistive
sensor for safe measurement and monitoring of absolute and gauge pressure.
The pressure switch with compact design is extremely stable and overload
resistant for up to 400bar. PTP31 with stainless steal housing is 3-A approved.
Benefits
- Excellent accuracy and briefest response time right to the smallest measuring range
- Integrated switching electronics for decentral and economic process monitoring and control
- Quick and flexible process integration thanks to modular connections
- High reproducibility and long-term stability. Function check and information on site thanks to LEDs and digital display
- Upper part of housing can be rotated by 310°, therefore best readability of measured values in all orientations
- DESINA compliant, 3-A approved
- Operation and visualization also with personal computer and ReadWin 2000
Field of application
Pressure switch with metallic sensor diaphragm for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.
- Finely graduated measuring ranges from vacuum to 400bar/6000psi
- Versions for use in hygienic applications
- Electronic versions: One PNP switch output, two PNP switch outputs, PNP switch output with additional analog output 4...20mA (active)
Technical information
| Measuring Principle | Pressure switch | |
| Characteristic | Intelligent pressure switch with piezoresistive sensor, longterm stable and overload resistant | |
| Supply / Communication | 12...30VDC | |
| Accuracy | 0,5% | |
| Long term stability | 0,15% of URL/year | |
| Process temperature |
-40°C...100°C (-40°F...212°F) |
|
| Ambient temperature |
-40°C...85°C (-40°F...185°F) |
|
| Measuring range |
1bar...400bar (15psi...6000psi) |
|
| Max. overpressure limit | 600bar (9000psi) | |
| Process connection | Threads | |
| Output |
1x PNP switch 2x PNP switch 1x PNP switch + 4...20mA analogue |
|
| Certificates / Approvals |
CULUS EN10204-3.1 |
|
| Options | calibration protocol | |
| Specialities |
Digital display Robust SS-housing with Ra < 0,8 micron |
|
| Hint | Please check also temperature swith Thermophant T with the identical look and feel of the housing, electronics and software. | |
