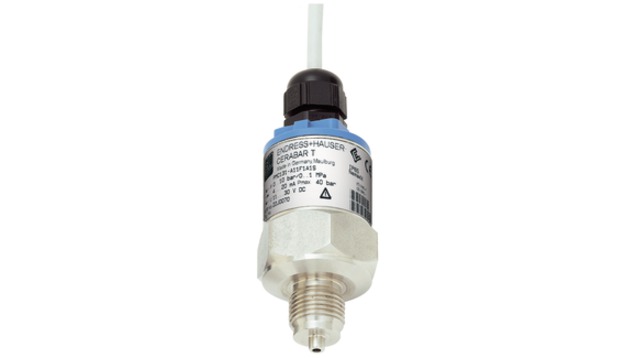

Cerabar PMC131 - Absolute And Gauge Pressure







The Cerabar PMC131 is a price-attractive pressure transmitter with capacitive,
oil-free ceramic sensor for absolute and gauge pressure measurement.
The compact design offers the following features: Direct system without diaphragm seal,
diaphragm overload/vacuum resistant and cable connection via device plug IP65.





Benefits

  • Extremely stable, overload-resistant and reliable

  • High reproducibility and long-term stability

  • Ceraphire® ceramic sensor: corrosion-proof, abrasion-proof and extremely overload-resistant

  • Dry capacitance ceramic sensor (Ceraphire®) for measuring ranges up to 40bar (600psi): overload-resistant,
    vacuum-proof, stable against alternating load







Field of application

The Cerabar T is a pressure transducer for measuring absolute pressure and gauge pressure in gases, vapors, liquids and dusts.





Technical information

Pressure

Measuring Principle Absolute and gauge pressure
Characteristic Cost-effective pressure transducer, capacitive ceramic sensor
Supply / Communication 11...30V DC
Accuracy 0,5%
Long term stability 0,15% of URL/year
Process temperature -20°C...100°C
(-40°F...212°F)
Ambient temperature -20°C...85°C
(-4°F...185°F)
Measuring range 100mbar...40bar
(1.5psi...600psi)
Max. overpressure limit 60bar (900psi)
Process connection Threads
Output 4...20mA Analogue
Certificates / Approvals ATEX, CSA
Marine GL
Options Calibration protocol
Specialities Ceraphire
