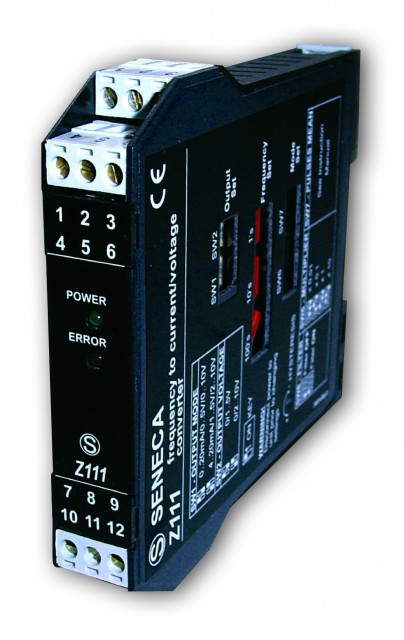

Z111-Frequency to DC isolator/converter


  • Description: Frequency to DC isolator / converter

  • Pulse Input: contact, npn 2 / 3 wiresi, pnp 3 wires 24 Vdc supply,
    namur, photoelectric, Hall sensor, variable reluctance, 24 V pulse,
    TTL, oval wheel counter flow meters

  • Frequency: From 1 mHz (0,001 Hz) to 9.99 KHz

  • Settable full scale: From 10 mHz (0,01 Hz) to 9.99 KHz

  • Output: Current 0..20, 4..20 mA; voltage 0..5/10, 1..5, 2..10 V

  • Power Supply: 19..40 (9..30 opz.) Vdc, 19..28 Vac

  • Isolation: 1.500 Vac

  • Conformity: CE, UL-UR CSA
