Levelflex FMP5x-Level and Interface Measurement in Liquids

Measuring Principle: Guided radar

Characteristic / Application

• Premium device
• Rod probe, Rope probe, Coaxial probe
• Integrated data memory
• Factory precalibrated
• Reliable measuring: in case of moved surface + foam, for changing medias.

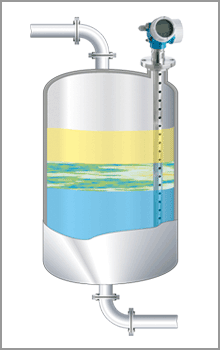

Interface measurement

• Clean interfaces liquid/ liquid;
• Simultaneous measurement of interface and overall level

Supply / Communication

• 2-wire (HART/ PROFIBUS PA/ FOUNDATION Fieldbus)
• 4-wire (HART)

Accuracy

• Rod probe :+/- 2 mm (0.08 in)
• Rope probe Rope probe > 15 m (49 ft): +/- 10 mm (0.39 in)
• Coaxial probe: +/- 5 mm (0.2 in)

Your benefits

• Reliable measuring:
• in case of moved surface and foam
• for changing medias
• High availablility
• Integrated data memory
• Factory precalibrated
• Intuitive, menu-guided operating concept in national languages
• Simple integration into control or asset management systems
• Exact instrument and process diagnosis to assist fast decisions
• Approvals: ATEX, IEC Ex, FM, CSA

Field of application

• FMP51 - premium device for level and interface measurement in liquids.
• Measuring range up to 45 m (148 ft)
• Process connection starting 3/4" thread or flange
• Temperature range: -40 to +200 °C (-40 to +392 °F)
• Pressure range: -1 to 40 bar (-14.5 to 580 psi)
• The following interfaces are available for system integration:
• - HART with 4...20 mA analog
• - PROFIBUS PA
• Used for level monitoring (MIN, MAX, range) up to SIL 2, independently assessed by TÜV as per IEC 61508
