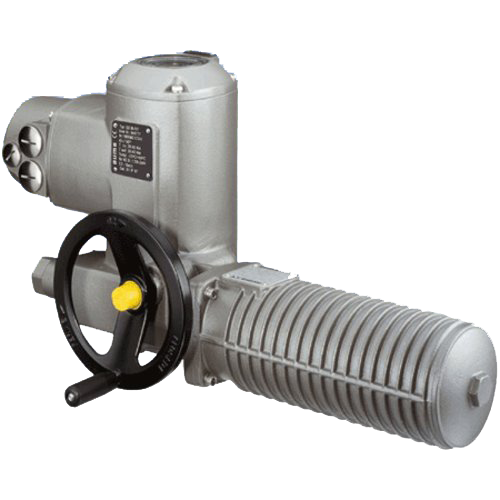

AUMA Open-close Part-turn actuators SG


Part-turn actuators SG .1 for open-close duty are rated for short-time duty S2 - 15 min.
A special version with reduced torque is available for the S2 - 30 min duty.

The actuators can be combined with different  controls
from the simple OPEN-CLOSE controls to the micro-controlled
version with logging of operating data or fieldbus interface.
Design features:
  • Torque range from 100 Nm to 1,200 Nm
  • Swing angles from 80° to 110°
  • Operating times for 90 ° from 4 s to 70 s
  • Limit and torque seating
  • 3-ph AC, 1-ph AC and DC motors
  • Handwheel for manual operation
  • Mechanical position indicator

Ambient conditions:
  • High enclosure protection
  • High quality corrosion protection
  • Wide ambient temperature ranges

Options:
  • Deviating swing angle
  • Intermediate position switches
  • Switch in tandem version
  • Remote position transmitter
  • Magnetic limit and torque transmitter
  • Mechanical position indicator

Interfaces:
  • Electrical connection via AUMA plug/ socket connector
  • Cable glands in different versions
  • Output drive types according to ISO standard
